Making and Riding the Crab Cycle

David Bagley Shows His Stuff

Video of David riding crab cycle

Video of David riding crab cycle in reverse

Video of David pausing crab cycle

Contents

Idea of Crab Cycle
Design of Crab Cycle (Tom Miller of The Unicycle Factory)
Build Steps from Tom Miller
Start of Build
Boring Box
Creating Axles
Adding a Gear to Axle
Wow! It Fits
Creating Gear with Sprocket
Completing Gears
Making of Threaded Clamps
Gear Housing Complete
Bending and Drilling of Frame
Crab Cycle Complete
Packing Crab Cycle
My Crab Cycle
Experiences Riding

Idea of Crab Cycle

original idea

The next logical step after a double wheel unicycle. Also wanted the it to be easily switchable (within a half hour) from pedal forwards go left to pedal forwards go right. David Bagley sent this idea to Tom Miller of the Unicycle Factory. Tom Miller did the hard part turning the idea into reality.

off the shelf gear box

Off the shelf gear box (not used).

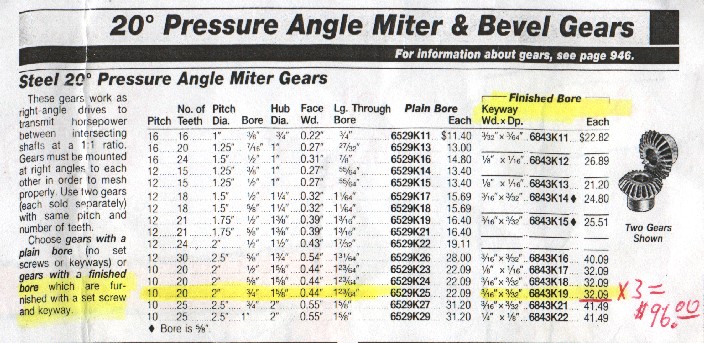

catalog_gear

Ordering parts.

master_invoice

Design of Crab Cycle (Tom Miller of The Unicycle Factory)

Main Gear Design

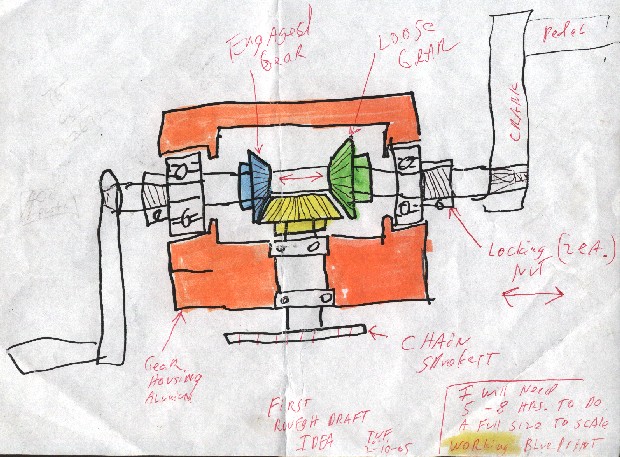

color draft

Early design, sprocket later moved to be inside gear box. Also bearings for sprocket axle were moved up as there was just enough room.

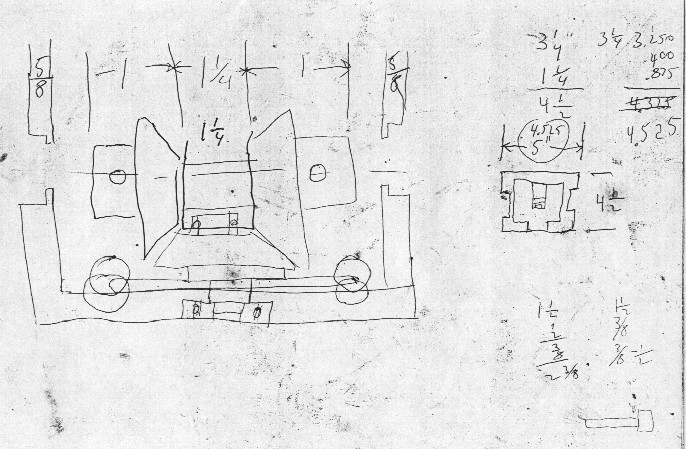

rough design

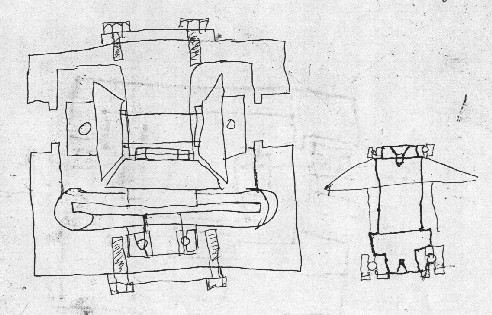

inside design

gear design

box design

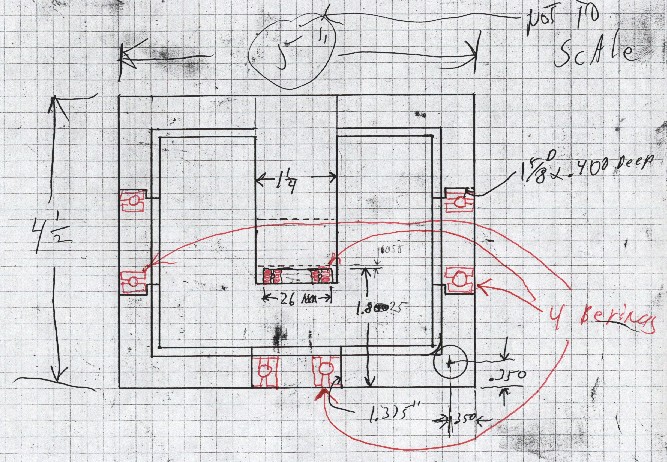

bearings design

spindle design

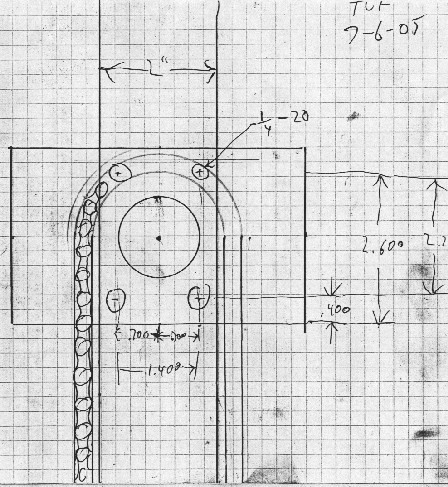

chain design

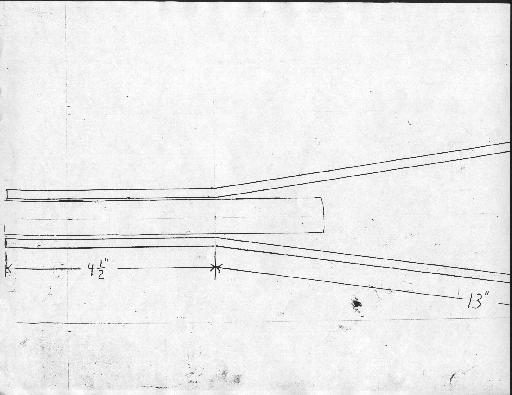

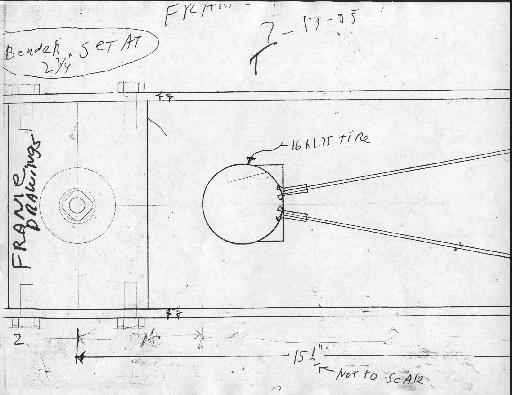

Frame Drawings

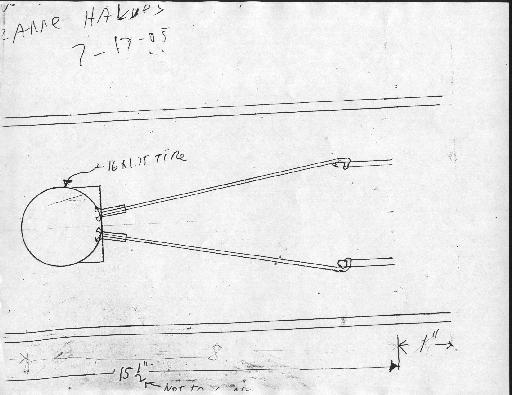

frame_design 0

frame_design 1

frame_design 2

frame_design 3

Build Steps from Tom Miller

Start of Build

starting AL block

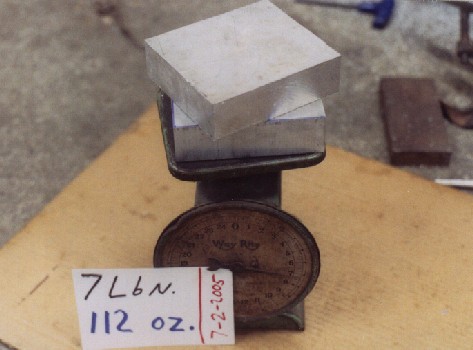

weighing blocks

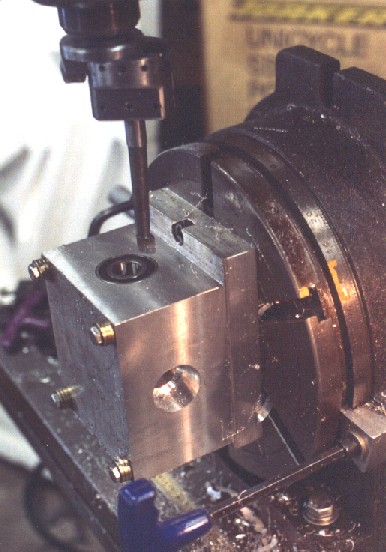

Boring Box

rough cut

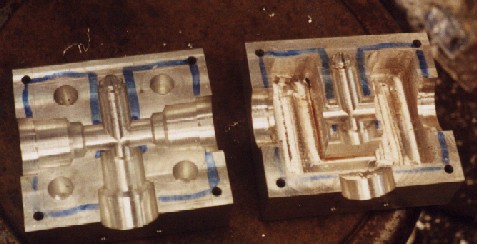

housing rough cut

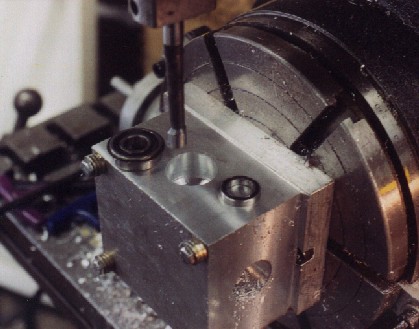

boring holes for bearings

housing bearing

boring box

Creating Axles

axle0

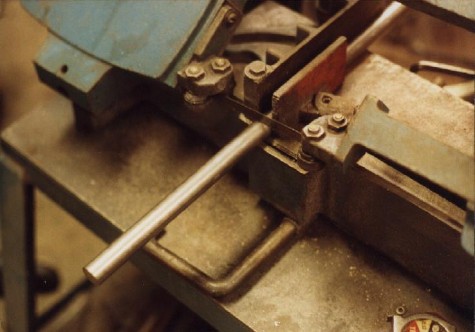

Starting with 3/4" 17 - 4 Stainless Steel

axle1

axle2

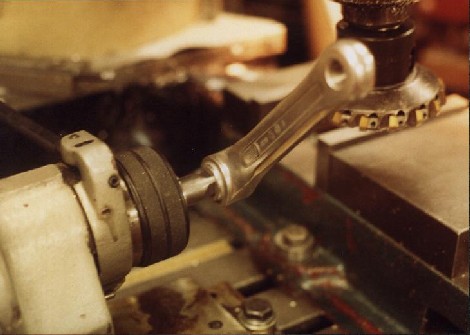

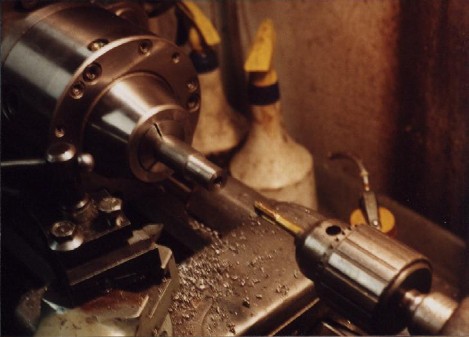

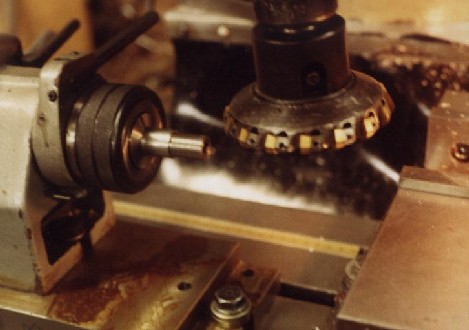

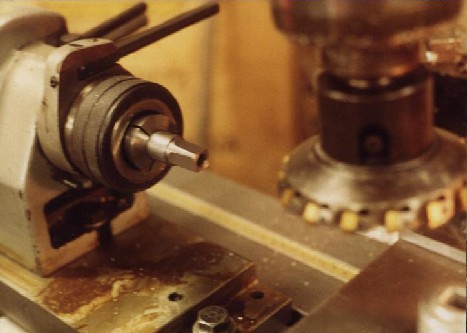

Cutting cotterless crank axle

axle3

axle4

axle5

3/4" - 16 threads per inch for threading for shaft collar

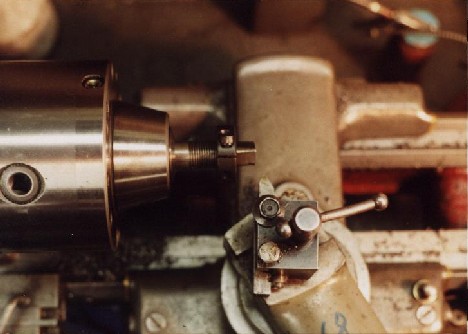

axle6

axle7

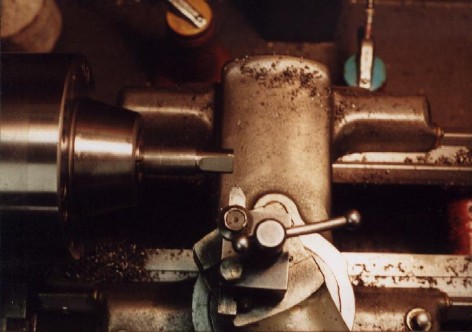

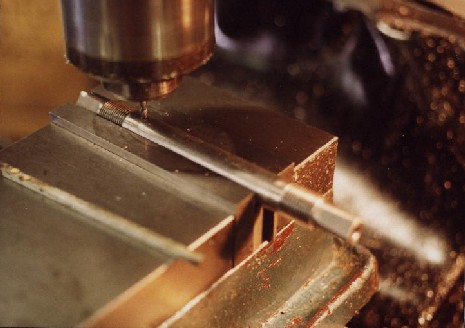

Cutting key-way slot for miter gears

axle8

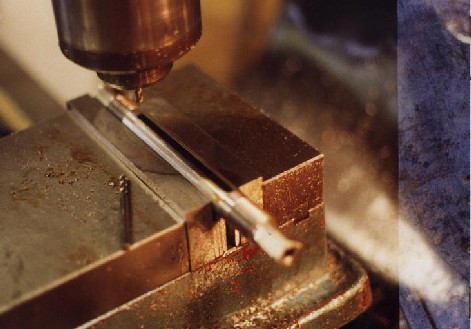

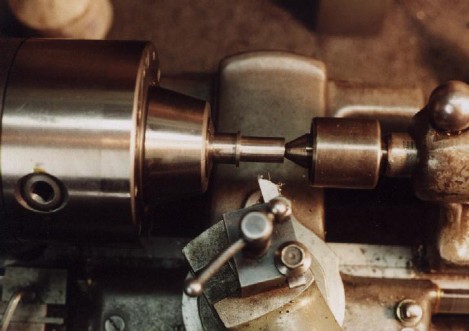

Axle for Sprocket

other_axle

Adding a Gear to Axle

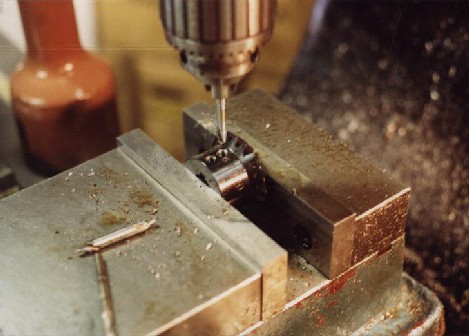

Locating new set screw holes

gear0

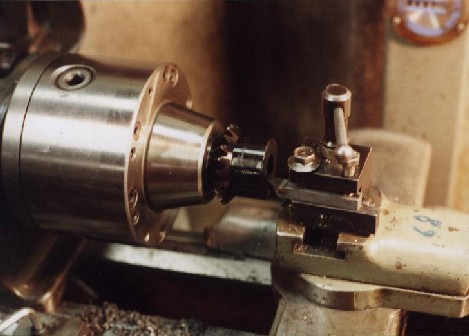

gear1

Remove excess material 0.300"

gear2

Before and after Miter Gear

gear3

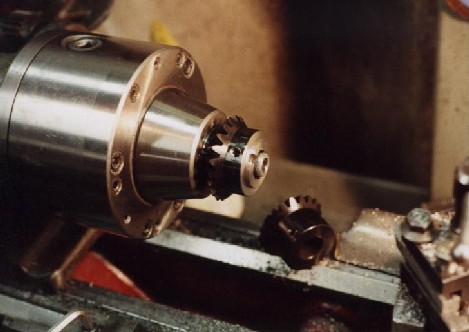

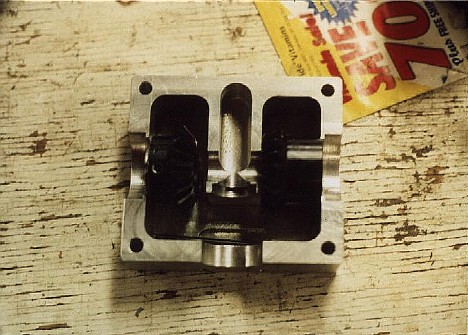

Fitting of gears

gear4

Wow! It Fits

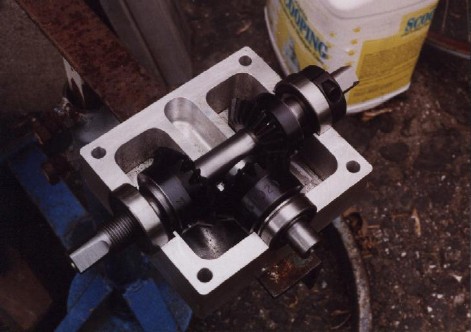

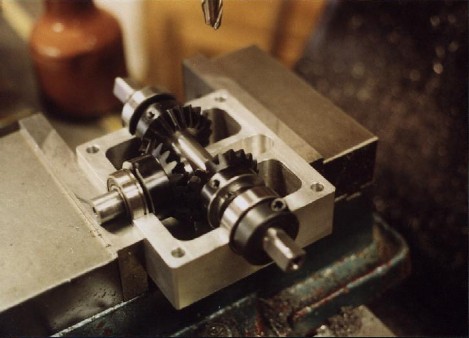

fits0

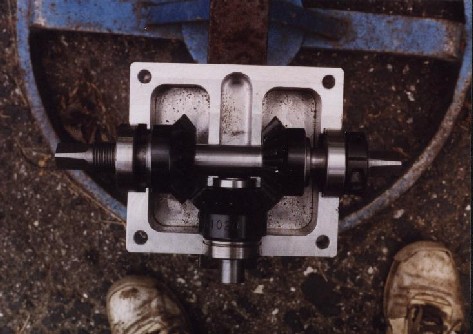

fits1

fits2

Creating Gear with Sprocket

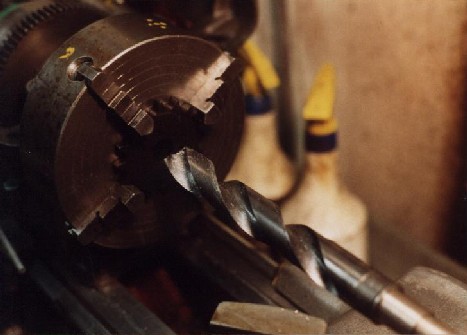

sprocket0

Boring Sprocket

sprocket1

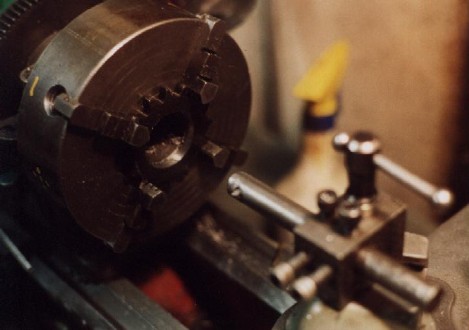

sprocket2

Marrying Sprocket and Gear

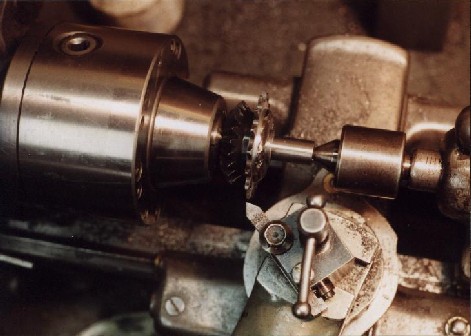

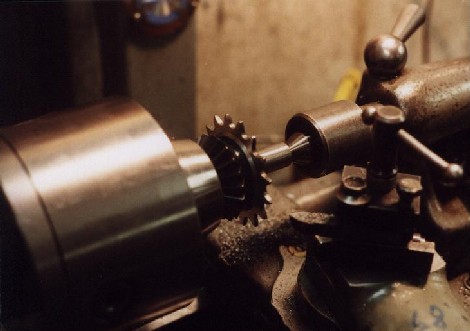

sprocket_gear0

sprocket_gear1

Completing Gears

Drill for roll pins

axle_gears0

Installing roll pits to set gears in place

axle_gears1

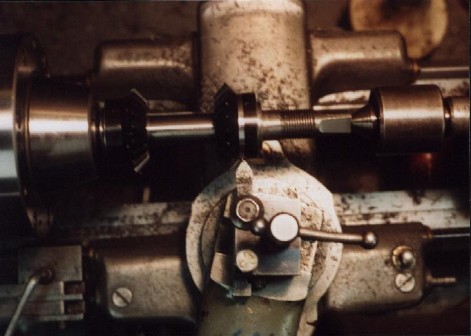

Thin Miter gear to reduce weight

axle_gears2

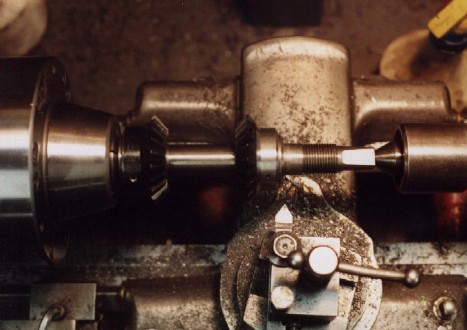

axle_gears3

Making of Threaded Clamps

These clamps allow one to shift from "go west" to "go east" easily.

New Aluminum shaft collar

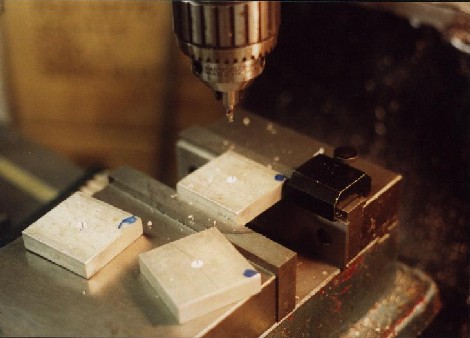

clamp start

adding the threads 3/4" hole with 16 threads per inch

clamp threads

clamp predrill

drill slot for allen screw

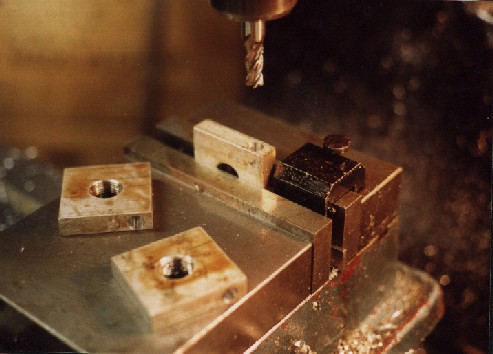

clamp drill

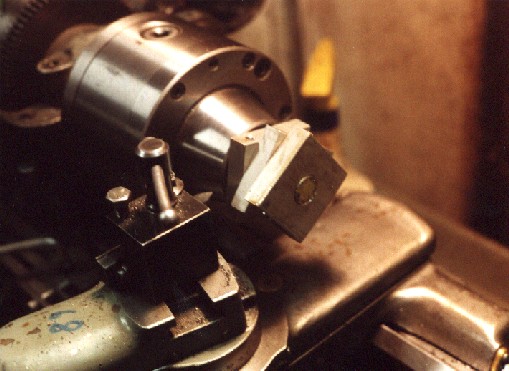

clamp square

was square now round

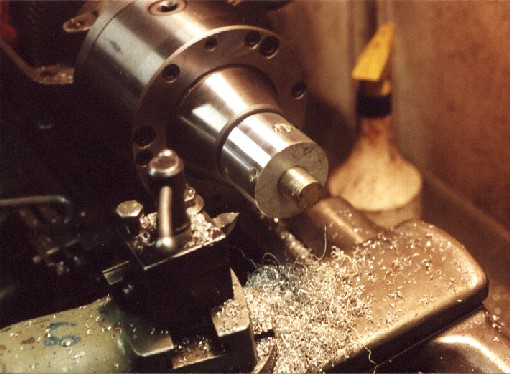

clamp round

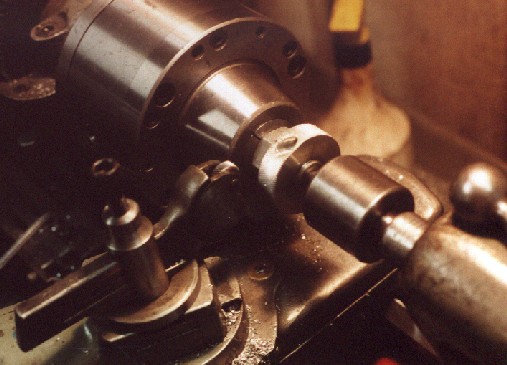

knerl the clamp

clamp knerl

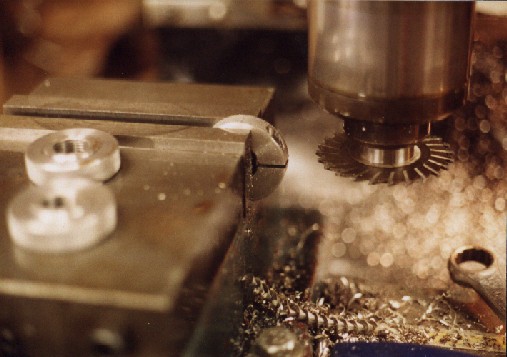

slitting shaft collar

clamp cut

Gear Housing Complete

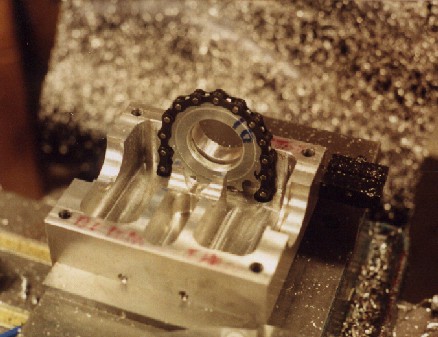

housing and chain

housing chain

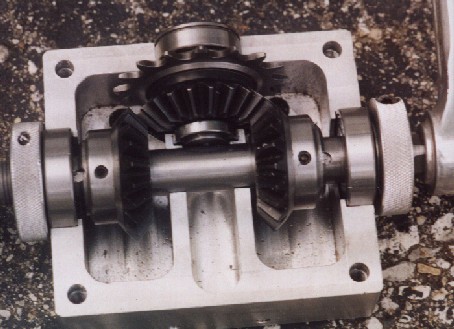

in case

top slot (faint) for chain clearance

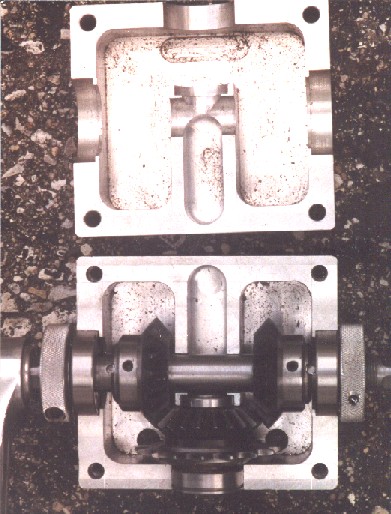

inside

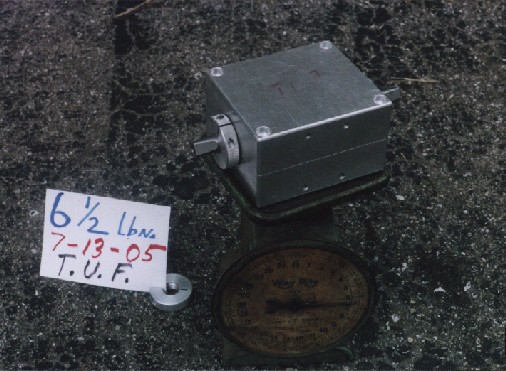

weighing closed

amazing it weighs the same, closed or open

weighing open

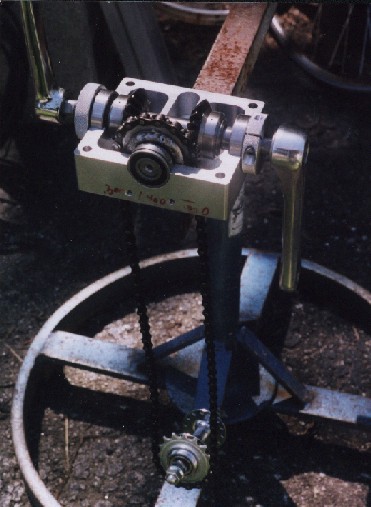

fits together

Bending and Drilling of Frame

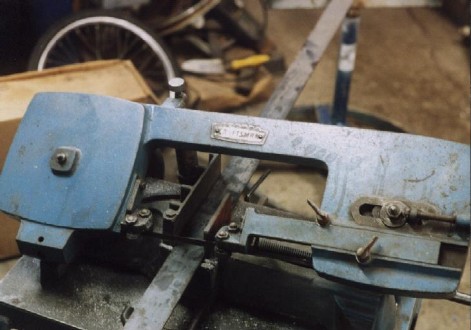

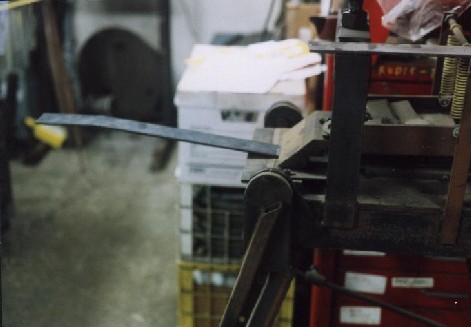

frame0

frame1

frame2

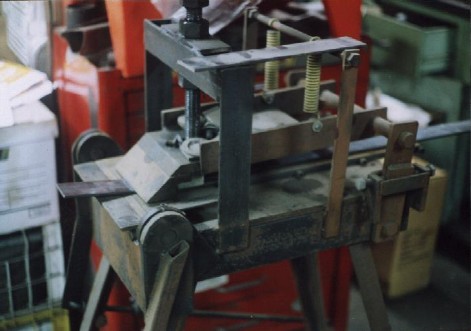

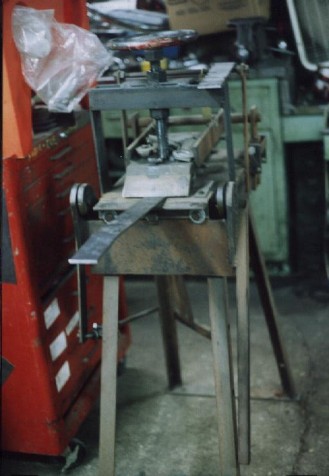

25 Year Old Tooling

frame3

frame4

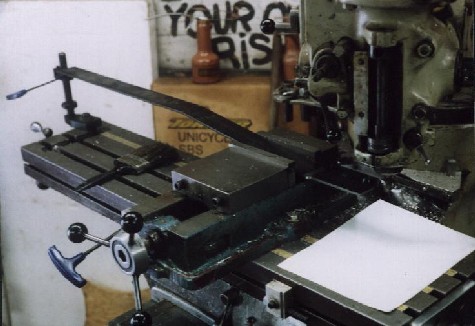

Narrowing 2" Frame to the 1.5" for the Crushing Cupping Die ("Schwinn")

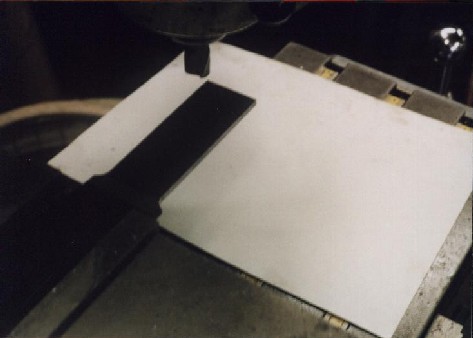

frame5

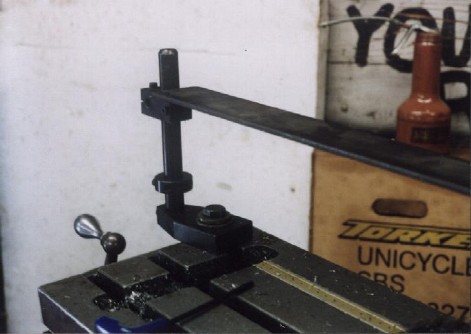

frame6

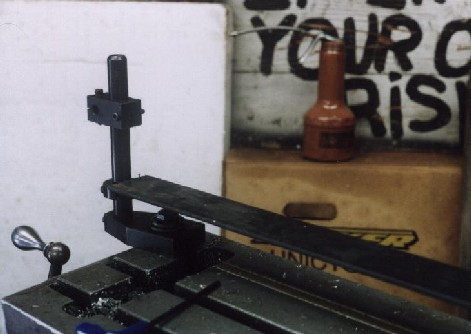

Drill Jig Stop Gauge

frame7

frame8

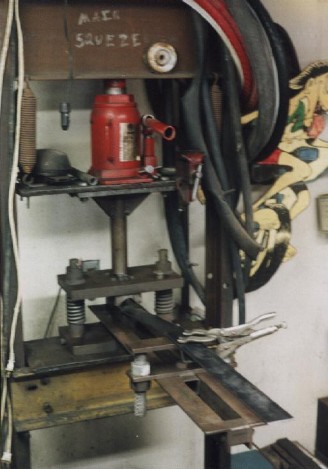

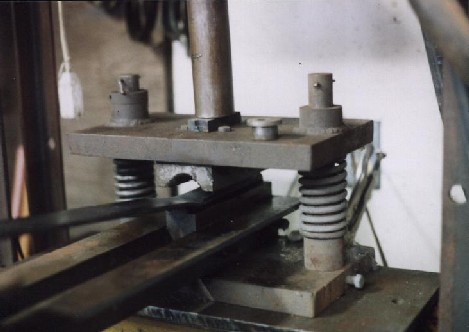

Frame Crush Die

frame9

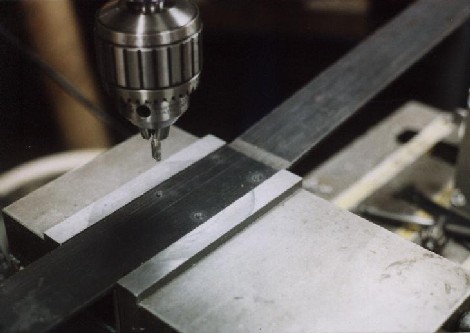

Frame Drilling

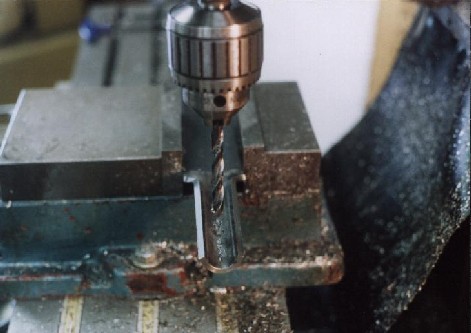

frame drill0

frame drill1

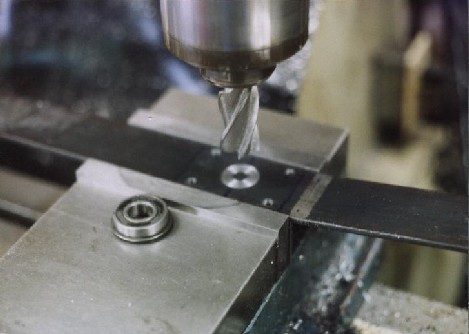

frame drill2

frame drill3

Post Drilling

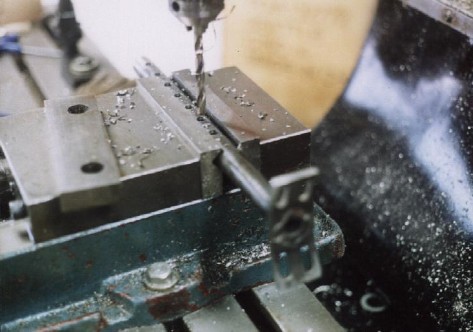

post drill

Crab Cycle Complete

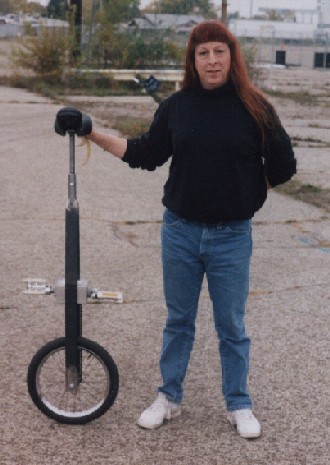

complete tom

complete side

16" wheel

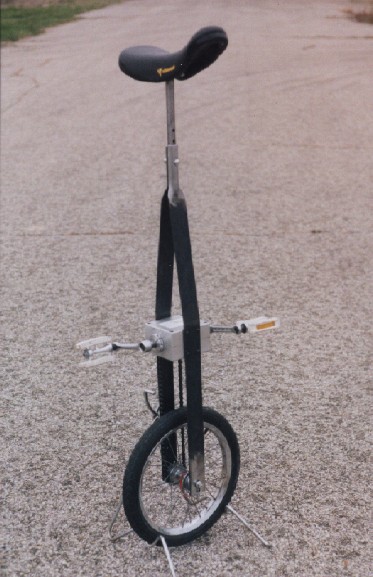

complete front

learning crab cycle vehicle

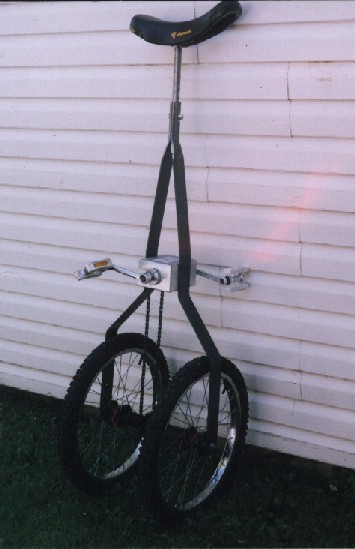

2 wheel crab cycle for learning

Packing Crab Cycle

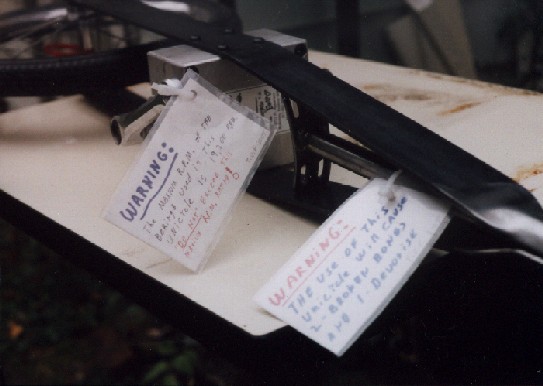

packing

Cost Breakdown

My Crab Cycle

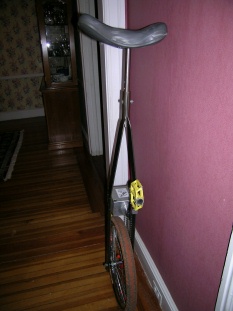

Crab

Now has a 20" wheel ... just enough room.

Side view of Crab

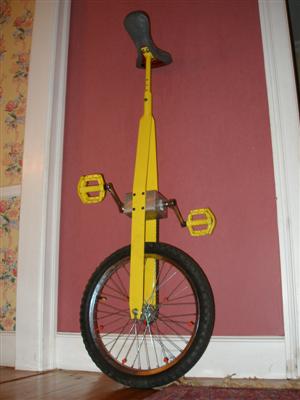

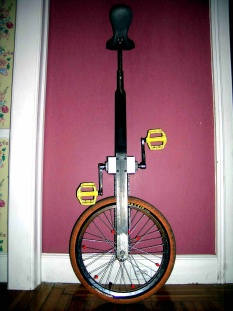

Its Yellow! (Tom Miller had it powder coated for me).

Its Yellow!

Experiences Riding

I needed about 3 months to learn to ride. For reference, it took me about 1 month to learn to ride the double wheel unicycle.

I practiced along a high fence and have it set to go west (pedal forwards, go left). I kept going from right to left until I needed to hold on less with both hands, eventually brushing lightly with the right hand. One has to lean left, then pedal forwards.

Next I learned how to fall off gracefully (it really helped me gain confidence). I held the right pedal down and let myself drop to the left.

Next I tried to see how far many revolutions I could get without touching the fence. I had to get up to about 40 revolutions, until I felt confident to leave the fence behind.

By 6 months I could ride a figure-eight with it. By 9 I could do a few and also riding by pedaling backwards, this took me many months to learn and found it took me longer to learn than forwards. Then at 10 months I just got idling with right foot down (it feels like a "Manual" or Skateboard Wheely) with the "required": ride in, 25 idles, and ride out. I am quite ambidextrous, but idling with the left foot down is too strange yet (it feels like your balancing on the front wheels of a skateboard, which is hard).

At 11 months, I could reverse direction on the fly. Also got a figure eight while pedaling backwards. And I was was finally able to mount it a few times, with the right pedal down, not too bad once I put my mind to it (knowing idling sure helps). At 12 months I was able to just barely juggle clubs on it (learned first to idle with hands behind my back).

Finally, at 15 months I got some left foot down idles... (ie ride into, idle 25 times, ride out). Just as hard for me, but maybe more impressive is the left foot on box idles. If I start holding on to something, I can do this one foot idle and then get my foot back on pedal and riding away. Still working on consistency and trying to figure out how to get my foot on the box from an idle.

I hope to get more consistent mounting and get better at juggling clubs on it. Also trying full turn of the wheel idles (did about 4-5 ie one full revolution and then reverse).

For 2 months now, I had the mechanism reversed to a "Go East" mode, ie. pedaling forwards one goes right. I was a total beginner once again! It took me a month to learn pedaling backwards and another month to learn pedal forwards. For some reason, I am more "left leaning" it seems. I rode in a circle the various ways and I was learning idling.

Switched back to "Go West" mode. I felt I was not progressing quick enough. After 5 min of disorientation, I was riding again with ease. Today, after numerous attempts, too many to count, I did my first mount into an idle.

Special thanks to Tom Miller for making it possible.
